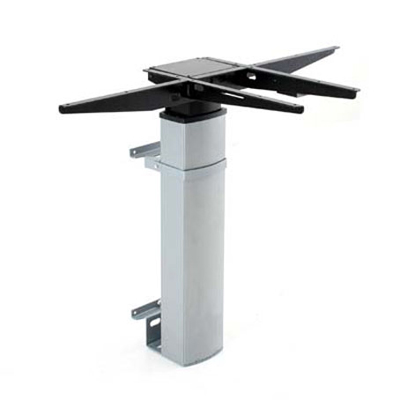

Electric Desk Frame | Width 090 cm | Silver
$ 445
Item no.: 501-19 8SW

501-19 Wall is a wall mounted system that eliminates the need for a base

501-19 Wall is delivered with tabletop support and control panel
- ready for plug-in.

Bracket A supports the following top sizes:
 Minimum top measurements: 37-3/8" x 21-5/8"
 Maximum top measurements: 55" x 39-3/8"

Bracket B supports the following top sizes:
 Minimum top measurements: 21-5/8" x 9-7/8"
 Maximum top measurements: 39-3/8" x 23-5/8"

Please note that some wall-types might need additional brackets to even out the load.

The 3-1/9" between column and wall allows for mounting a cable tray.

Frame color:
Frame size:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example: Multiple boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the separate components is listed below.

Item no.:
501-19 8SW
Description:
Electric Desk Frame | Width 090 cm | Silver
Stock status
AmountItem no.DescriptionUnit pricePrice In stock
1501-X1 XSXXXLifting column, silver$ 276,-$ 276,-
1501-XX 8XPOWAPower Box A$ 72,-$ 72,-
1501-19 WSWallbracket 501-19, silver$ 97,-$ 97,-

Total
$ 445,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X1 XSXXX70181612,005704142111987
501-XX 8XPOWA221190,705704142127018
501-19 WS595096,105704142114995
